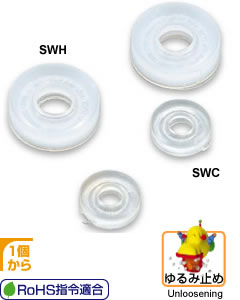

Locking and Sealing Ring

SWH·SWC

Useful for locking and sealing.
SWH ――― Use with Hexagon Bolts and Hexagon Nuts
SWC ――― Use with Hexagon Socket Head Cap Screws
For more information about SWT Toothed Washers for use with Sealing Lock Ring, Please inquire.
Temperature Capability:-60°C~80°C
Material/Finish
Polyamide (White)

Dimensions & Specification

SWH (For Hexagon Bolts and Hexagon Nuts)

unit:mm
Catalog Number	Nominal Size	d	D	T			Mass (g)	Q'ty per Pack
SWH-3	3	3.2	8	2.2	SWH_3.dxf	download	0.1	10
SWH-4	4	4.15	9.5	2.6	SWH_4.dxf	download	0.1	10
SWH-5	5	5.15	10.6	3	SWH_5.dxf	download	0.2	10
SWH-6	6	6.5	12.7	3.5	SWH_6.dxf	download	0.3	10
SWH-8	8	8.1	16.2	4	SWH_8.dxf	download	0.6	5
SWH-10	10	10.2	19.6	4.5	SWH_10.dxf	download	1	5
SWH-12	12	12.2	23.6	5	SWH_12.dxf	download	1.5	5
SWH-16	16	16.2	29.4	6	SWH_16.dxf	download	2.7	5

SWC (For Hexagon Socket Head Cap Screws)

unit:mm
Catalog Number	Nominal Size	d	D	T			Mass (g)	Q'ty per Pack
SWC-4	4	4.1	7.7	2	SWC_4.dxf	download	0.1	10
SWC-5	5	5.15	9.8	3	SWC_5.dxf	download	0.2	10
SWC-6	6	6.5	10.5	2.5	SWC_6.dxf	download	0.2	10
SWC-8	8	8.1	14	3.3	SWC_8.dxf	download	0.3	10
SWC-10	10	10.2	17	3.8	SWC_10.dxf	download	0.5	10
SWC-12	12	12.2	19	4.4	SWC_12.dxf	download	0.7	5
SWC-16	16	16.2	25	5.6	SWC_16.dxf	download	1.6	5
