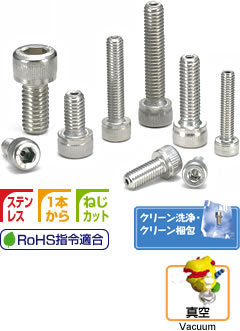

Socket Head Cap Screw (with Ventilation Hole)

SVSS


Dimensions & Specifications

SVSS (without Surface Treatment)

unit:mm
Catalog
Number		 M L D1 L1 B d
max.		 CAD DATA 2D/3D Mass (g) Q'ty
per Pack
SVSS-M3x5 M3 5 5.5 3 2.5 1.2
0.5 20
SVSS-M3x6 M3 6 5.5 3 2.5 1.2
0.6 20
SVSS-M3x8 M3 8 5.5 3 2.5 1.2
0.7 20
SVSS-M3x10 M3 10 5.5 3 2.5 1.2
0.7 20
SVSS-M3x12 M3 12 5.5 3 2.5 1.2
0.8 20
SVSS-M3x16 M3 16 5.5 3 2.5 1.2
0.9 20
SVSS-M4x5 M4 5 7 4 3 1.5
1.1 20
SVSS-M4x6 M4 6 7 4 3 1.5
1.3 20
SVSS-M4x8 M4 8 7 4 3 1.5
1.4 20
SVSS-M4x10 M4 10 7 4 3 1.5
1.5 20
SVSS-M4x12 M4 12 7 4 3 1.5
1.6 20
SVSS-M4x16 M4 16 7 4 3 1.5
1.8 20
SVSS-M4x20 M4 20 7 4 3 1.5
2.2 20
SVSS-M4x25 M4 25 7 4 3 1.5
2.5 20
SVSS-M4x30 M4 30 7 4 3 1.5
2.7 10
SVSS-M4x35 M4 35 7 4 3 1.5
3 10
SVSS-M5x6 M5 6 8.5 5 4 1.5
2.2 10
SVSS-M5x8 M5 8 8.5 5 4 1.5
2.6 10
SVSS-M5x10 M5 10 8.5 5 4 1.5
2.8 10
SVSS-M5x12 M5 12 8.5 5 4 1.5
2.9 10
SVSS-M5x16 M5 16 8.5 5 4 1.5
3.3 10
SVSS-M5x20 M5 20 8.5 5 4 1.5
3.7 10
SVSS-M5x25 M5 25 8.5 5 4 1.5
4.4 10
SVSS-M5x30 M5 30 8.5 5 4 1.5
4.9 10
SVSS-M5x35 M5 35 8.5 5 4 1.5
5.4 10
SVSS-M5x40 M5 40 8.5 5 4 2
5.9 10
SVSS-M6x8 M6 8 10 6 5 2
4 10
SVSS-M6x10 M6 10 10 6 5 2
4.2 10
SVSS-M6x12 M6 12 10 6 5 2
4.6 10
SVSS-M6x16 M6 16 10 6 5 2
4.9 10
SVSS-M6x20 M6 20 10 6 5 2
5.8 10
SVSS-M6x25 M6 25 10 6 5 2
6.6 10
SVSS-M6x30 M6 30 10 6 5 2
7 10
SVSS-M6x35 M6 35 10 6 5 2
7.9 10
SVSS-M6x40 M6 40 10 6 5 2
8.6 10
SVSS-M6x45 M6 45 10 6 5 3
9.4 10
SVSS-M6x50 M6 50 10 6 5 3
10.2 10
SVSS-M8x12 M8 12 13 8 6 2
10.5 10
SVSS-M8x16 M8 16 13 8 6 2
11.1 10
SVSS-M8x20 M8 20 13 8 6 2
12.3 10
SVSS-M8x25 M8 25 13 8 6 2
13.4 10
SVSS-M8x30 M8 30 13 8 6 2
15 10
SVSS-M8x35 M8 35 13 8 6 2
16.4 10
SVSS-M8x40 M8 40 13 8 6 2
17.7 10
SVSS-M8x45 M8 45 13 8 6 2
18.8 10
SVSS-M8x50 M8 50 13 8 6 3
20.1 10
SVSS-M8x60 M8 60 13 8 6 3
22.7 5
SVSS-M10x16 M10 16 16 10 8 3
18.9 5
SVSS-M10x20 M10 20 16 10 8 3
20.7 5
SVSS-M10x25 M10 25 16 10 8 3
23.7 5
SVSS-M10x30 M10 30 16 10 8 3
24.9 5
SVSS-M10x35 M10 35 16 10 8 3
27.7 5
SVSS-M10x40 M10 40 16 10 8 3
30.3 5
SVSS-M10x45 M10 45 16 10 8 3
31.8 5
SVSS-M10x50 M10 50 16 10 8 3
39.3 5
SVSS-M10x60 M10 60 16 10 8 3
45.5 5
SVSS-M12x30 M12 30 18 12 10 3
38.5 5
SVSS-M12x35 M12 35 18 12 10 3
40.8 5
SVSS-M12x40 M12 40 18 12 10 3
43.9 5
SVSS-M12x45 M12 45 18 12 10 3
47.5 5
SVSS-M12x50 M12 50 18 12 10 3
50.6 5
SVSS-M12x60 M12 60 18 12 10 3
58.7 5
