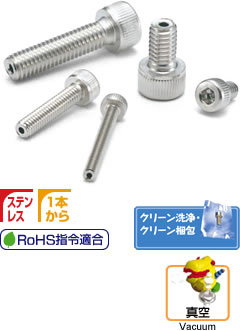

Socket Head Cap Screw (with Ventilation Hole/Chemicall Polish)
| Catalog Number |
M | L | D1 | L1 | B | d max. |
 |
Mass (g) | Q'ty per Pack |
|---|---|---|---|---|---|---|---|---|---|
| SVSS-M3x5-PC | M3 | 5 | 5.5 | 3 | 2.5 | 1.2 | 0.5 | 20 | |
| SVSS-M3x6-PC | M3 | 6 | 5.5 | 3 | 2.5 | 1.2 | 0.6 | 20 | |
| SVSS-M3x8-PC | M3 | 8 | 5.5 | 3 | 2.5 | 1.2 | 0.7 | 20 | |
| SVSS-M3x10-PC | M3 | 10 | 5.5 | 3 | 2.5 | 1.2 | 0.7 | 20 | |
| SVSS-M3x12-PC | M3 | 12 | 5.5 | 3 | 2.5 | 1.2 | 0.8 | 20 | |
| SVSS-M3x16-PC | M3 | 16 | 5.5 | 3 | 2.5 | 1.2 | 0.9 | 20 | |
| SVSS-M4x5-PC | M4 | 5 | 7 | 4 | 3 | 1.5 | 1.1 | 20 | |
| SVSS-M4x6-PC | M4 | 6 | 7 | 4 | 3 | 1.5 | 1.3 | 20 | |
| SVSS-M4x8-PC | M4 | 8 | 7 | 4 | 3 | 1.5 | 1.4 | 20 | |
| SVSS-M4x10-PC | M4 | 10 | 7 | 4 | 3 | 1.5 | 1.5 | 20 | |
| SVSS-M4x12-PC | M4 | 12 | 7 | 4 | 3 | 1.5 | 1.6 | 20 | |
| SVSS-M4x16-PC | M4 | 16 | 7 | 4 | 3 | 1.5 | 1.8 | 20 | |
| SVSS-M4x20-PC | M4 | 20 | 7 | 4 | 3 | 1.5 | 2.2 | 20 | |
| SVSS-M4x25-PC | M4 | 25 | 7 | 4 | 3 | 1.5 | 2.5 | 20 | |
| SVSS-M4x30-PC | M4 | 30 | 7 | 4 | 3 | 1.5 | 2.7 | 10 | |
| SVSS-M4x35-PC | M4 | 35 | 7 | 4 | 3 | 1.5 | 3 | 10 | |
| SVSS-M5x6-PC | M5 | 6 | 8.5 | 5 | 4 | 1.5 | 2.2 | 10 | |
| SVSS-M5x8-PC | M5 | 8 | 8.5 | 5 | 4 | 1.5 | 2.6 | 10 | |
| SVSS-M5x10-PC | M5 | 10 | 8.5 | 5 | 4 | 1.5 | 2.8 | 10 | |
| SVSS-M5x12-PC | M5 | 12 | 8.5 | 5 | 4 | 1.5 | 2.9 | 10 | |
| SVSS-M5x16-PC | M5 | 16 | 8.5 | 5 | 4 | 1.5 | 3.3 | 10 | |
| SVSS-M5x20-PC | M5 | 20 | 8.5 | 5 | 4 | 1.5 | 3.7 | 10 | |
| SVSS-M5x25-PC | M5 | 25 | 8.5 | 5 | 4 | 1.5 | 4.4 | 10 | |
| SVSS-M5x30-PC | M5 | 30 | 8.5 | 5 | 4 | 1.5 | 4.9 | 10 | |
| SVSS-M5x35-PC | M5 | 35 | 8.5 | 5 | 4 | 1.5 | 5.4 | 10 | |
| SVSS-M5x40-PC | M5 | 40 | 8.5 | 5 | 4 | 2 | 5.9 | 10 | |
| SVSS-M6x8-PC | M6 | 8 | 10 | 6 | 5 | 2 | 4 | 10 | |
| SVSS-M6x10-PC | M6 | 10 | 10 | 6 | 5 | 2 | 4.2 | 10 | |
| SVSS-M6x12-PC | M6 | 12 | 10 | 6 | 5 | 2 | 4.6 | 10 | |
| SVSS-M6x16-PC | M6 | 16 | 10 | 6 | 5 | 2 | 4.9 | 10 | |
| SVSS-M6x20-PC | M6 | 20 | 10 | 6 | 5 | 2 | 5.8 | 10 | |
| SVSS-M6x25-PC | M6 | 25 | 10 | 6 | 5 | 2 | 6.6 | 10 | |
| SVSS-M6x30-PC | M6 | 30 | 10 | 6 | 5 | 2 | 7 | 10 | |
| SVSS-M6x35-PC | M6 | 35 | 10 | 6 | 5 | 2 | 7.9 | 10 | |
| SVSS-M6x40-PC | M6 | 40 | 10 | 6 | 5 | 2 | 8.6 | 10 | |
| SVSS-M6x45-PC | M6 | 45 | 10 | 6 | 5 | 3 | 9.4 | 10 | |
| SVSS-M6x50-PC | M6 | 50 | 10 | 6 | 5 | 3 | 10.2 | 10 | |
| SVSS-M8x12-PC | M8 | 12 | 13 | 8 | 6 | 2 | 10.5 | 10 | |
| SVSS-M8x16-PC | M8 | 16 | 13 | 8 | 6 | 2 | 11.1 | 10 | |
| SVSS-M8x20-PC | M8 | 20 | 13 | 8 | 6 | 2 | 12.3 | 10 | |
| SVSS-M8x25-PC | M8 | 25 | 13 | 8 | 6 | 2 | 13.4 | 10 | |
| SVSS-M8x30-PC | M8 | 30 | 13 | 8 | 6 | 2 | 15 | 10 | |
| SVSS-M8x35-PC | M8 | 35 | 13 | 8 | 6 | 2 | 16.4 | 10 | |
| SVSS-M8x40-PC | M8 | 40 | 13 | 8 | 6 | 2 | 17.7 | 10 | |
| SVSS-M8x45-PC | M8 | 45 | 13 | 8 | 6 | 2 | 18.8 | 10 | |
| SVSS-M8x50-PC | M8 | 50 | 13 | 8 | 6 | 3 | 20.1 | 10 | |
| SVSS-M8x60-PC | M8 | 60 | 13 | 8 | 6 | 3 | 22.7 | 5 | |
| SVSS-M10x16-PC | M10 | 16 | 16 | 10 | 8 | 3 | 18.9 | 5 | |
| SVSS-M10x20-PC | M10 | 20 | 16 | 10 | 8 | 3 | 20.7 | 5 | |
| SVSS-M10x25-PC | M10 | 25 | 16 | 10 | 8 | 3 | 23.7 | 5 | |
| SVSS-M10x30-PC | M10 | 30 | 16 | 10 | 8 | 3 | 24.9 | 5 | |
| SVSS-M10x35-PC | M10 | 35 | 16 | 10 | 8 | 3 | 27.7 | 5 | |
| SVSS-M10x40-PC | M10 | 40 | 16 | 10 | 8 | 3 | 30.3 | 5 | |
| SVSS-M10x45-PC | M10 | 45 | 16 | 10 | 8 | 3 | 31.8 | 5 | |
| SVSS-M10x50-PC | M10 | 50 | 16 | 10 | 8 | 3 | 39.3 | 5 | |
| SVSS-M10x60-PC | M10 | 60 | 16 | 10 | 8 | 3 | 45.5 | 5 | |
| SVSS-M12x30-PC | M12 | 30 | 18 | 12 | 10 | 3 | 38.5 | 5 | |
| SVSS-M12x35-PC | M12 | 35 | 18 | 12 | 10 | 3 | 40.8 | 5 | |
| SVSS-M12x40-PC | M12 | 40 | 18 | 12 | 10 | 3 | 43.9 | 5 | |
| SVSS-M12x45-PC | M12 | 45 | 18 | 12 | 10 | 3 | 47.5 | 5 | |
| SVSS-M12x50-PC | M12 | 50 | 18 | 12 | 10 | 3 | 50.6 | 5 | |
| SVSS-M12x60-PC | M12 | 60 | 18 | 12 | 10 | 3 | 58.7 | 5 |
