Socket Head Cap Screw（with Ventilation Hole/Special Low Head）

SVSHS 六角穴付き極低頭ボルト（ガス抜き用穴つき）

頭部高さはすべて1.5mm以下。締めつけ後も頭部の出っ張りが気になりません。機器・装置のコンパクト化や安全性の向上に。
FPD製造装置・半導体製造装置など、クリーンルーム内の真空装置・真空容器に。
クリーン洗浄済み。油やゴミの付着していないクリーン仕様です。
[SVSHS-PC] は特殊化学研磨処理により、表面粗さを改善。放出ガスが極微量です。
材質・仕上げ
SUSXM7（SUS304相当）
表面処理なし ―――――[SVSHS]
特殊化学研磨処理 ―――[SVSHS-PC]
使用例
ねじを締めつけたとき、タップ穴の下穴に溜まったガスの除去が必要な真空装置・真空容器に有効です。

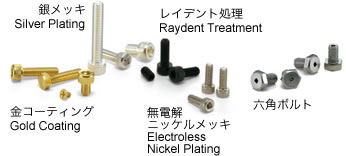

寸法・形状・材質・表面処理・クリーン洗浄・特殊梱包など、特殊仕様の製品を製作いたします。

寸法・性能・価格

SVSHS (表面処理なし)

unit:mm
品番	M	L	D₁	L₁	B	t max.	d max.		質量 (g)	1袋入り数	価格/袋* (円)
SVSHS-M3×6	M3	6	6	1.3	1.5	2	1.2	SVSHS_M3.dxf	0.5	20	5,400
SVSHS-M3×8	M3	8	6	1.3	1.5	2	1.2	SVSHS_M3.dxf	0.6	20	5,800
SVSHS-M3×10	M3	10	6	1.3	1.5	2	1.2	SVSHS_M3.dxf	0.7	20	6,000
SVSHS-M4×6	M4	6	8	1.5	2	2.5	1.5	SVSHS_M4.dxf	1	20	5,400
SVSHS-M4×8	M4	8	8	1.5	2	2.5	1.5	SVSHS_M4.dxf	1.1	20	5,800
SVSHS-M4×10	M4	10	8	1.5	2	2.5	1.5	SVSHS_M4.dxf	1.3	20	6,000
SVSHS-M4×12	M4	12	8	1.5	2	2.5	1.5	SVSHS_M4.dxf	1.4	20	6,400
SVSHS-M4×16	M4	16	8	1.5	2	2.5	1.5	SVSHS_M4.dxf	1.7	20	7,000
SVSHS-M5×6	M5	6	9	1.5	3	3	1.5	SVSHS_M5.dxf	1.3	10	3,100
SVSHS-M5×8	M5	8	9	1.5	3	3	1.5	SVSHS_M5.dxf	1.5	10	3,100
SVSHS-M5×10	M5	10	9	1.5	3	3	1.5	SVSHS_M5.dxf	1.8	10	3,200
SVSHS-M5×12	M5	12	9	1.5	3	3	1.5	SVSHS_M5.dxf	2	10	3,500
SVSHS-M5×16	M5	16	9	1.5	3	3	1.5	SVSHS_M5.dxf	2.5	10	3,600
SVSHS-M5×20	M5	20	9	1.5	3	3	1.5	SVSHS_M5.dxf	3	10	3,900
SVSHS-M6×6	M6	6	10	1.5	3	4	2	SVSHS_M6.dxf	1.7	10	3,900
SVSHS-M6×8	M6	8	10	1.5	3	4	2	SVSHS_M6.dxf	2.1	10	3,500
SVSHS-M6×10	M6	10	10	1.5	3	4	2	SVSHS_M6.dxf	2.4	10	3,600
SVSHS-M6×12	M6	12	10	1.5	3	4	2	SVSHS_M6.dxf	2.8	10	3,700
SVSHS-M6×16	M6	16	10	1.5	3	4	2	SVSHS_M6.dxf	3.5	10	4,000
SVSHS-M6×20	M6	20	10	1.5	3	4	2	SVSHS_M6.dxf	4.2	10	4,400
SVSHS-M6×25	M6	25	10	1.5	3	4	2	SVSHS_M6.dxf	5	10	4,700
SVSHS-M6×30	M6	30	10	1.5	3	4	2	SVSHS_M6.dxf	5.9	10	4,900
SVSHS-M8×8	M8	8	13	1.5	4	5	2	SVSHS_M8.dxf	3.5	10	5,100
SVSHS-M8×10	M8	10	13	1.5	4	5	2	SVSHS_M8.dxf	4.2	10	5,100
SVSHS-M8×12	M8	12	13	1.5	4	5	2	SVSHS_M8.dxf	4.8	10	4,600
SVSHS-M8×16	M8	16	13	1.5	4	5	2	SVSHS_M8.dxf	6.1	10	4,800
SVSHS-M8×20	M8	20	13	1.5	4	5	2	SVSHS_M8.dxf	7.3	10	5,100
SVSHS-M8×25	M8	25	13	1.5	4	5	2	SVSHS_M8.dxf	8.9	10	5,400
SVSHS-M8×30	M8	30	13	1.5	4	5	2	SVSHS_M8.dxf	10.5	10	5,800
SVSHS-M10×10	M10	10	16	1.5	5	6	3	SVSHS_M10.dxf	6.3	5	2,750
SVSHS-M10×12	M10	12	16	1.5	5	6	3	SVSHS_M10.dxf	7.3	5	2,700
SVSHS-M10×16	M10	16	16	1.5	5	6	3	SVSHS_M10.dxf	9.3	5	2,650
SVSHS-M10×20	M10	20	16	1.5	5	6	3	SVSHS_M10.dxf	11.3	5	2,800
SVSHS-M10×25	M10	25	16	1.5	5	6	3	SVSHS_M10.dxf	13.8	5	3,000
SVSHS-M10×30	M10	30	16	1.5	5	6	3	SVSHS_M10.dxf	16.3	5	3,200

*価格は1袋あたりの価格です。1本からのご注文も承ります。価格はお問い合わせください。

SVSHS-PC (特殊化学研磨処理)

unit:mm
品番	M	L	D₁	L₁	B	t max.	d max.		質量 (g)	1袋入り数	価格/袋* (円)
SVSHS-M3×6-PC	M3	6	6	1.3	1.5	2	1.2	SVSHS_M3.dxf	0.5	20	5,600
SVSHS-M3×8-PC	M3	8	6	1.3	1.5	2	1.2	SVSHS_M3.dxf	0.6	20	6,000
SVSHS-M3×10-PC	M3	10	6	1.3	1.5	2	1.2	SVSHS_M3.dxf	0.7	20	6,200
SVSHS-M4×6-PC	M4	6	8	1.5	2	2.5	1.5	SVSHS_M4.dxf	1	20	5,600
SVSHS-M4×8-PC	M4	8	8	1.5	2	2.5	1.5	SVSHS_M4.dxf	1.1	20	6,000
SVSHS-M4×10-PC	M4	10	8	1.5	2	2.5	1.5	SVSHS_M4.dxf	1.3	20	6,400
SVSHS-M4×12-PC	M4	12	8	1.5	2	2.5	1.5	SVSHS_M4.dxf	1.4	20	6,600
SVSHS-M4×16-PC	M4	16	8	1.5	2	2.5	1.5	SVSHS_M4.dxf	1.7	20	7,400
SVSHS-M5×6-PC	M5	6	9	1.5	3	3	1.5	SVSHS_M5.dxf	1.3	10	3,300
SVSHS-M5×8-PC	M5	8	9	1.5	3	3	1.5	SVSHS_M5.dxf	1.5	10	3,300
SVSHS-M5×10-PC	M5	10	9	1.5	3	3	1.5	SVSHS_M5.dxf	1.8	10	3,400
SVSHS-M5×12-PC	M5	12	9	1.5	3	3	1.5	SVSHS_M5.dxf	2	10	3,700
SVSHS-M5×16-PC	M5	16	9	1.5	3	3	1.5	SVSHS_M5.dxf	2.5	10	3,900
SVSHS-M5×20-PC	M5	20	9	1.5	3	3	1.5	SVSHS_M5.dxf	3	10	4,300
SVSHS-M6×6-PC	M6	6	10	1.5	3	4	2	SVSHS_M6.dxf	1.7	10	4,100
SVSHS-M6×8-PC	M6	8	10	1.5	3	4	2	SVSHS_M6.dxf	2.1	10	3,700
SVSHS-M6×10-PC	M6	10	10	1.5	3	4	2	SVSHS_M6.dxf	2.4	10	3,800
SVSHS-M6×12-PC	M6	12	10	1.5	3	4	2	SVSHS_M6.dxf	2.8	10	4,000
SVSHS-M6×16-PC	M6	16	10	1.5	3	4	2	SVSHS_M6.dxf	3.5	10	4,400
SVSHS-M6×20-PC	M6	20	10	1.5	3	4	2	SVSHS_M6.dxf	4.2	10	4,900
SVSHS-M6×25-PC	M6	25	10	1.5	3	4	2	SVSHS_M6.dxf	5	10	5,300
SVSHS-M6×30-PC	M6	30	10	1.5	3	4	2	SVSHS_M6.dxf	5.9	10	5,600
SVSHS-M8×8-PC	M8	8	13	1.5	4	5	2	SVSHS_M8.dxf	3.5	10	5,600
SVSHS-M8×10-PC	M8	10	13	1.5	4	5	2	SVSHS_M8.dxf	4.2	10	5,600
SVSHS-M8×12-PC	M8	12	13	1.5	4	5	2	SVSHS_M8.dxf	4.8	10	5,200
SVSHS-M8×16-PC	M8	16	13	1.5	4	5	2	SVSHS_M8.dxf	6.1	10	5,500
SVSHS-M8×20-PC	M8	20	13	1.5	4	5	2	SVSHS_M8.dxf	7.3	10	6,000
SVSHS-M8×25-PC	M8	25	13	1.5	4	5	2	SVSHS_M8.dxf	8.9	10	6,500
SVSHS-M8×30-PC	M8	30	13	1.5	4	5	2	SVSHS_M8.dxf	10.5	10	7,100
SVSHS-M10×10-PC	M10	10	16	1.5	5	6	3	SVSHS_M10.dxf	6.3	5	3,150
SVSHS-M10×12-PC	M10	12	16	1.5	5	6	3	SVSHS_M10.dxf	7.3	5	3,150
SVSHS-M10×16-PC	M10	16	16	1.5	5	6	3	SVSHS_M10.dxf	9.3	5	3,200
SVSHS-M10×20-PC	M10	20	16	1.5	5	6	3	SVSHS_M10.dxf	11.3	5	3,500
SVSHS-M10×25-PC	M10	25	16	1.5	5	6	3	SVSHS_M10.dxf	13.8	5	3,850
SVSHS-M10×30-PC	M10	30	16	1.5	5	6	3	SVSHS_M10.dxf	16.3	5	4,200

*価格は1袋あたりの価格です。1本からのご注文も承ります。価格はお問い合わせください。
