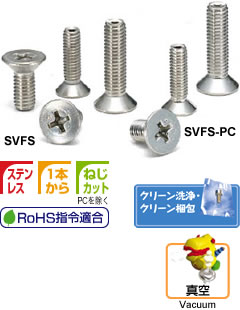

Phillips Cross Recessed Flat Head Machine Screw
| 產品編號 | M | L | D1 | L1 | d max. |
DXF資料 | 重量 (g) | 數量/包 |
|---|---|---|---|---|---|---|---|---|
| SVFS-M3x5 | M3 | 5 | 6 | 1.75 | 1.2 | SVFS_M3.dxf | 0.3 | 20 |
| SVFS-M3x6 | M3 | 6 | 6 | 1.75 | 1.2 | SVFS_M3.dxf | 0.4 | 20 |
| SVFS-M3x8 | M3 | 8 | 6 | 1.75 | 1.2 | SVFS_M3.dxf | 0.4 | 20 |
| SVFS-M3x10 | M3 | 10 | 6 | 1.75 | 1.2 | SVFS_M3.dxf | 0.5 | 20 |
| SVFS-M3x12 | M3 | 12 | 6 | 1.75 | 1.2 | SVFS_M3.dxf | 0.6 | 20 |
| SVFS-M4x5 | M4 | 5 | 8 | 2.3 | 1.5 | SVFS_M4.dxf | 0.6 | 20 |
| SVFS-M4x6 | M4 | 6 | 8 | 2.3 | 1.5 | SVFS_M4.dxf | 0.7 | 20 |
| SVFS-M4x8 | M4 | 8 | 8 | 2.3 | 1.5 | SVFS_M4.dxf | 0.8 | 20 |
| SVFS-M4x10 | M4 | 10 | 8 | 2.3 | 1.5 | SVFS_M4.dxf | 1 | 20 |
| SVFS-M4x12 | M4 | 12 | 8 | 2.3 | 1.5 | SVFS_M4.dxf | 1.1 | 20 |
| SVFS-M4x16 | M4 | 16 | 8 | 2.3 | 1.5 | SVFS_M4.dxf | 1.3 | 20 |
| SVFS-M5x6 | M5 | 6 | 10 | 2.8 | 1.5 | SVFS_M5.dxf | 1.3 | 10 |
| SVFS-M5x8 | M5 | 8 | 10 | 2.8 | 1.5 | SVFS_M5.dxf | 1.5 | 10 |
| SVFS-M5x10 | M5 | 10 | 10 | 2.8 | 1.5 | SVFS_M5.dxf | 1.7 | 10 |
| SVFS-M5x12 | M5 | 12 | 10 | 2.8 | 1.5 | SVFS_M5.dxf | 1.9 | 10 |
| SVFS-M5x16 | M5 | 16 | 10 | 2.8 | 1.5 | SVFS_M5.dxf | 2.4 | 10 |
| SVFS-M5x20 | M5 | 20 | 10 | 2.8 | 1.5 | SVFS_M5.dxf | 2.8 | 10 |
| SVFS-M6x8 | M6 | 8 | 12 | 3.4 | 2 | SVFS_M6.dxf | 2.4 | 10 |
| SVFS-M6x10 | M6 | 10 | 12 | 3.4 | 2 | SVFS_M6.dxf | 2.5 | 10 |
| SVFS-M6x12 | M6 | 12 | 12 | 3.4 | 2 | SVFS_M6.dxf | 2.8 | 10 |
| SVFS-M6x16 | M6 | 16 | 12 | 3.4 | 2 | SVFS_M6.dxf | 3.4 | 10 |
| SVFS-M6x20 | M6 | 20 | 12 | 3.4 | 2 | SVFS_M6.dxf | 4.1 | 10 |
| SVFS-M6x25 | M6 | 25 | 12 | 3.4 | 2 | SVFS_M6.dxf | 4.7 | 10 |
| 產品編號 | M | L | D1 | L1 | d max. |
DXF資料 | 重量 (g) | 數量/包 |
|---|---|---|---|---|---|---|---|---|
| SVFS-M3x5-PC | M3 | 5 | 6 | 1.75 | 1.2 | SVFS_M3.dxf | 0.3 | 20 |
| SVFS-M3x6-PC | M3 | 6 | 6 | 1.75 | 1.2 | SVFS_M3.dxf | 0.4 | 20 |
| SVFS-M3x8-PC | M3 | 8 | 6 | 1.75 | 1.2 | SVFS_M3.dxf | 0.4 | 20 |
| SVFS-M3x10-PC | M3 | 10 | 6 | 1.75 | 1.2 | SVFS_M3.dxf | 0.5 | 20 |
| SVFS-M3x12-PC | M3 | 12 | 6 | 1.75 | 1.2 | SVFS_M3.dxf | 0.6 | 20 |
| SVFS-M4x5-PC | M4 | 5 | 8 | 2.3 | 1.5 | SVFS_M4.dxf | 0.6 | 20 |
| SVFS-M4x6-PC | M4 | 6 | 8 | 2.3 | 1.5 | SVFS_M4.dxf | 0.7 | 20 |
| SVFS-M4x8-PC | M4 | 8 | 8 | 2.3 | 1.5 | SVFS_M4.dxf | 0.8 | 20 |
| SVFS-M4x10-PC | M4 | 10 | 8 | 2.3 | 1.5 | SVFS_M4.dxf | 1 | 20 |
| SVFS-M4x12-PC | M4 | 12 | 8 | 2.3 | 1.5 | SVFS_M4.dxf | 1.1 | 20 |
| SVFS-M4x16-PC | M4 | 16 | 8 | 2.3 | 1.5 | SVFS_M4.dxf | 1.3 | 20 |
| SVFS-M5x6-PC | M5 | 6 | 10 | 2.8 | 1.5 | SVFS_M5.dxf | 1.3 | 10 |
| SVFS-M5x8-PC | M5 | 8 | 10 | 2.8 | 1.5 | SVFS_M5.dxf | 1.5 | 10 |
| SVFS-M5x10-PC | M5 | 10 | 10 | 2.8 | 1.5 | SVFS_M5.dxf | 1.7 | 10 |
| SVFS-M5x12-PC | M5 | 12 | 10 | 2.8 | 1.5 | SVFS_M5.dxf | 1.9 | 10 |
| SVFS-M5x16-PC | M5 | 16 | 10 | 2.8 | 1.5 | SVFS_M5.dxf | 2.4 | 10 |
| SVFS-M5x20-PC | M5 | 20 | 10 | 2.8 | 1.5 | SVFS_M5.dxf | 2.8 | 10 |
| SVFS-M6x8-PC | M6 | 8 | 12 | 3.4 | 2 | SVFS_M6.dxf | 2.4 | 10 |
| SVFS-M6x10-PC | M6 | 10 | 12 | 3.4 | 2 | SVFS_M6.dxf | 2.5 | 10 |
| SVFS-M6x12-PC | M6 | 12 | 12 | 3.4 | 2 | SVFS_M6.dxf | 2.8 | 10 |
| SVFS-M6x16-PC | M6 | 16 | 12 | 3.4 | 2 | SVFS_M6.dxf | 3.4 | 10 |
| SVFS-M6x20-PC | M6 | 20 | 12 | 3.4 | 2 | SVFS_M6.dxf | 4.1 | 10 |
| SVFS-M6x25-PC | M6 | 25 | 12 | 3.4 | 2 | SVFS_M6.dxf | 4.7 | 10 |
