Aluminum Socket Head Cap Screw

SNSA

Aluminum
For use in lightweight applications in automobiles, aircrafts, spacecrafts, medical instruments, and robots.
Occurrences of galvanic corrosion through contact with aluminum alloys are non-existent.
May be used with FDP (Flat Panel Display) and semiconductor production equipment and devices which utilize aluminum alloys.
Excellent resistance against corrosion, electricity, and thermal conductivity.
All Clean washed. Clean-Wash format prevents inclusion of oil and foreign particles.
Material/Finish
A5056

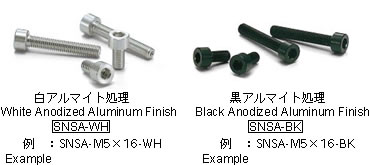

Anodized Aluminum finished products are also available.
For more information, please inquire.

unit:mm
Catalog Number	M	L	D₁	L₁	B		Tensile* Breaking Force (N)	Mass (g)
SNSA-M3x6	M3	6	5.5	3	2.5	SNSA_M3.dxf	1650	0.2
SNSA-M3x8	M3	8	5.5	3	2.5	SNSA_M3.dxf	1650	0.2
SNSA-M3x10	M3	10	5.5	3	2.5	SNSA_M3.dxf	1650	0.2
SNSA-M3x12	M3	12	5.5	3	2.5	SNSA_M3.dxf	1650	0.3
SNSA-M3x16	M3	16	5.5	3	2.5	SNSA_M3.dxf	1650	0.3
SNSA-M3x20	M3	20	5.5	3	2.5	SNSA_M3.dxf	1650	0.4
SNSA-M4x8	M4	8	7	4	3	SNSA_M4.dxf	2890	0.6
SNSA-M4x10	M4	10	7	4	3	SNSA_M4.dxf	2890	0.6
SNSA-M4x12	M4	12	7	4	3	SNSA_M4.dxf	2890	0.7
SNSA-M4x16	M4	16	7	4	3	SNSA_M4.dxf	2890	0.8
SNSA-M4x20	M4	20	7	4	3	SNSA_M4.dxf	2890	0.9
SNSA-M4x25	M4	25	7	4	3	SNSA_M4.dxf	2890	1
SNSA-M5x10	M5	10	8.5	5	4	SNSA_M5.dxf	4680	0.9
SNSA-M5x12	M5	12	8.5	5	4	SNSA_M5.dxf	4680	1
SNSA-M5x16	M5	16	8.5	5	4	SNSA_M5.dxf	4680	1.1
SNSA-M5x20	M5	20	8.5	5	4	SNSA_M5.dxf	4680	1.3
SNSA-M5x25	M5	25	8.5	5	4	SNSA_M5.dxf	4680	1.5
SNSA-M6x12	M6	12	10	6	5	SNSA_M6.dxf	6630	1.4
SNSA-M6x16	M6	16	10	6	5	SNSA_M6.dxf	6630	1.7
SNSA-M6x20	M6	20	10	6	5	SNSA_M6.dxf	6630	2
SNSA-M6x25	M6	25	10	6	5	SNSA_M6.dxf	6630	2.4
SNSA-M6x30	M6	30	10	6	5	SNSA_M6.dxf	6630	2.9
SNSA-M8x16	M8	16	13	8	6	SNSA_M8.dxf	12000	3.9
SNSA-M8x20	M8	20	13	8	6	SNSA_M8.dxf	12000	4.4
SNSA-M8x25	M8	25	13	8	6	SNSA_M8.dxf	12000	4.9
SNSA-M8x30	M8	30	13	8	6	SNSA_M8.dxf	12000	5.4
SNSA-M8x35	M8	35	13	8	6	SNSA_M8.dxf	12000	5.9

* The numerical values listed above are for reference only; they are not guaranteed under performance conditions.

Dimensions & Specification
