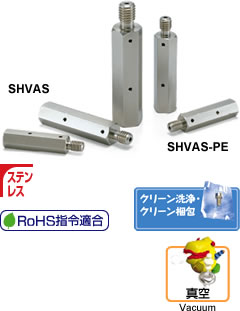

Hexagon Post (with Ventilation Hole)

SHVAS

One end is male thread, and the other end is female thread.
Can be used with more than two hexagon posts.
May be used with vacuum chamber applications in clean rooms, FPD (Flat Panel Display) production equipment and semiconductor devices.
All are clean washed. Clean wash format minimizes gas diffusion and prevents foreign particle inclusion.
Electro Polish improves surface roughness, minimizing gas diffusion and foreign particle inclusion.
Material/Finish:
SUS304
SHVAS---No Surface Treatment
SHVAS-PE ---Electro Polish
Applications:
Great for applications required removing trapped gases in the pilot bore, such as a vaccum chanmer and vacuum case.

Dimensions & Specifications

SHVAS (No Surface Treatment)

unit:mm
Catalog Number	M	L±0.1	B	C (About)	L₁	L₂	d₁	d₂			Mass (g)	Q'ty per Pack
SHVAS-M3x15	M3	15	6	6.9	4.5	6	1.2	1.5	SHVAS_M3.dxf	-	3.5	1
SHVAS-M3x20	M3	20	6	6.9	4.5	6	1.2	1.5	SHVAS_M3.dxf	-	4.7	1
SHVAS-M3x25	M3	25	6	6.9	4.5	6	1.2	1.5	SHVAS_M3.dxf	-	5.9	1
SHVAS-M3x30	M3	30	6	6.9	4.5	6	1.2	1.5	SHVAS_M3.dxf	-	7.2	1
SHVAS-M3x35	M3	35	6	6.9	4.5	6	1.2	1.5	SHVAS_M3.dxf	-	8.4	1
SHVAS-M3x40	M3	40	6	6.9	4.5	6	1.2	1.5	SHVAS_M3.dxf	-	9.6	1
SHVAS-M4x20	M4	20	7	8.1	6	8	1.5	1.5	SHVAS_M4.dxf	-	6.4	1
SHVAS-M4x25	M4	25	7	8.1	6	8	1.5	1.5	SHVAS_M4.dxf	-	8	1
SHVAS-M4x30	M4	30	7	8.1	6	8	1.5	1.5	SHVAS_M4.dxf	-	9.7	1
SHVAS-M4x35	M4	35	7	8.1	6	8	1.5	1.5	SHVAS_M4.dxf	-	11.3	1
SHVAS-M4x40	M4	40	7	8.1	6	8	1.5	1.5	SHVAS_M4.dxf	-	13	1
SHVAS-M4x45	M4	45	7	8.1	6	8	1.5	1.5	SHVAS_M4.dxf	-	14.6	1
SHVAS-M4x50	M4	50	7	8.1	6	8	1.5	1.5	SHVAS_M4.dxf	-	16.2	1
SHVAS-M4x60	M4	60	7	8.1	6	8	1.5	1.5	SHVAS_M4.dxf	-	19.5	1
SHVAS-M4x70	M4	70	7	8.1	6	8	1.5	1.5	SHVAS_M4.dxf	-	22.7	1
SHVAS-M4x80	M4	80	7	8.1	6	8	1.5	1.5	SHVAS_M4.dxf	-	26	1
SHVAS-M5x20	M5	20	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	8.2	1
SHVAS-M5x25	M5	25	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	10.3	1
SHVAS-M5x30	M5	30	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	12.4	1
SHVAS-M5x35	M5	35	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	14.5	1
SHVAS-M5x40	M5	40	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	16.7	1
SHVAS-M5x45	M5	45	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	18.8	1
SHVAS-M5x50	M5	50	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	20.9	1
SHVAS-M5x60	M5	60	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	25.1	1
SHVAS-M5x70	M5	70	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	29.3	1
SHVAS-M5x80	M5	80	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	33.6	1
SHVAS-M5x90	M5	90	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	37.8	1
SHVAS-M5x100	M5	100	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	42	1
SHVAS-M6x25	M6	25	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	16	1
SHVAS-M6x30	M6	30	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	19.4	1
SHVAS-M6x35	M6	35	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	22.7	1
SHVAS-M6x40	M6	40	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	26.1	1
SHVAS-M6x45	M6	45	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	29.4	1
SHVAS-M6x50	M6	50	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	32.8	1
SHVAS-M6x60	M6	60	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	39.5	1
SHVAS-M6x70	M6	70	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	46.2	1
SHVAS-M6x80	M6	80	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	53	1
SHVAS-M6x90	M6	90	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	60	1
SHVAS-M6x100	M6	100	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	66.4	1
SHVAS-M6x120	M6	120	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	80	1
SHVAS-M6x150	M6	150	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	100	1
SHVAS-M8x35	M8	35	13	15	12	16	2	1.5	SHVAS_M8.dxf	-	38	1
SHVAS-M8x40	M8	40	13	15	12	16	2	1.5	SHVAS_M8.dxf	-	43.7	1
SHVAS-M8x45	M8	45	13	15	12	16	2	1.5	SHVAS_M8.dxf	-	49.5	1
SHVAS-M8x50	M8	50	13	15	12	16	2	1.5	SHVAS_M8.dxf	-	55.2	1
SHVAS-M8x60	M8	60	13	15	12	16	2	1.5	SHVAS_M8.dxf	-	66.7	1
SHVAS-M8x70	M8	70	13	15	12	16	2	1.5	SHVAS_M8.dxf	-	78.2	1
SHVAS-M8x80	M8	80	13	15	12	16	2	1.5	SHVAS_M8.dxf	-	90	1
SHVAS-M8x90	M8	90	13	15	12	16	2	1.5	SHVAS_M8.dxf	-	101	1
SHVAS-M8x100	M8	100	13	15	12	16	2	1.5	SHVAS_M8.dxf	-	112.6	1
SHVAS-M8x120	M8	120	13	15	12	16	2	1.5	SHVAS_M8.dxf	-	135.6	1
SHVAS-M8x150	M8	150	13	15	12	16	2	1.5	SHVAS_M8.dxf	-	170	1

SHVAS-PE (Electro Polish)

unit:mm
Catalog Number	M	L±0.1	B	C (About)	L₁	L₂	ｄ₁	d₂			Mass (g)	Q'ty per Pack
SHVAS-M3x15-PE	M3	15	6	6.9	4.5	6	1.2	1.5	SHVAS_M3.dxf	-	3.5	1
SHVAS-M3x20-PE	M3	20	6	6.9	4.5	6	1.2	1.5	SHVAS_M3.dxf	-	4.7	1
SHVAS-M3x25-PE	M3	25	6	6.9	4.5	6	1.2	1.5	SHVAS_M3.dxf	-	5.9	1
SHVAS-M3x30-PE	M3	30	6	6.9	4.5	6	1.2	1.5	SHVAS_M3.dxf	-	7.2	1
SHVAS-M3x35-PE	M3	35	6	6.9	4.5	6	1.2	1.5	SHVAS_M3.dxf	-	8.4	1
SHVAS-M3x40-PE	M3	40	6	6.9	4.5	6	1.2	1.5	SHVAS_M3.dxf	-	9.6	1
SHVAS-M4x20-PE	M4	20	7	8.1	6	8	1.5	1.5	SHVAS_M4.dxf	-	6.4	1
SHVAS-M4x25-PE	M4	25	7	8.1	6	8	1.5	1.5	SHVAS_M4.dxf	-	8	1
SHVAS-M4x30-PE	M4	30	7	8.1	6	8	1.5	1.5	SHVAS_M4.dxf	-	9.7	1
SHVAS-M4x35-PE	M4	35	7	8.1	6	8	1.5	1.5	SHVAS_M4.dxf	-	11.3	1
SHVAS-M4x40-PE	M4	40	7	8.1	6	8	1.5	1.5	SHVAS_M4.dxf	-	13	1
SHVAS-M4x45-PE	M4	45	7	8.1	6	8	1.5	1.5	SHVAS_M4.dxf	-	14.6	1
SHVAS-M4x50-PE	M4	50	7	8.1	6	8	1.5	1.5	SHVAS_M4.dxf	-	16.2	1
SHVAS-M4x60-PE	M4	60	7	8.1	6	8	1.5	1.5	SHVAS_M4.dxf	-	19.5	1
SHVAS-M4x70-PE	M4	70	7	8.1	6	8	1.5	1.5	SHVAS_M4.dxf	-	22.7	1
SHVAS-M4x80-PE	M4	80	7	8.1	6	8	1.5	1.5	SHVAS_M4.dxf	-	26	1
SHVAS-M5x20-PE	M5	20	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	8.2	1
SHVAS-M5x25-PE	M5	25	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	10.3	1
SHVAS-M5x30-PE	M5	30	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	12.4	1
SHVAS-M5x35-PE	M5	35	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	14.5	1
SHVAS-M5x40-PE	M5	40	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	16.7	1
SHVAS-M5x45-PE	M5	45	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	18.8	1
SHVAS-M5x50-PE	M5	50	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	20.9	1
SHVAS-M5x60-PE	M5	60	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	25.1	1
SHVAS-M5x70-PE	M5	70	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	29.3	1
SHVAS-M5x80-PE	M5	80	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	33.6	1
SHVAS-M5x90-PE	M5	90	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	37.8	1
SHVAS-M5x100-PE	M5	100	8	9.2	7.5	10	1.5	1.5	SHVAS_M5.dxf	-	42	1
SHVAS-M6x25-PE	M6	25	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	16	1
SHVAS-M6x30-PE	M6	30	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	19.4	1
SHVAS-M6x35-PE	M6	35	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	22.7	1
SHVAS-M6x40-PE	M6	40	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	26.1	1
SHVAS-M6x45-PE	M6	45	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	29.4	1
SHVAS-M6x50-PE	M6	50	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	32.8	1
SHVAS-M6x60-PE	M6	60	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	39.5	1
SHVAS-M6x70-PE	M6	70	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	46.2	1
SHVAS-M6x80-PE	M6	80	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	53	1
SHVAS-M6x90-PE	M6	90	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	60	1
SHVAS-M6x100-PE	M6	100	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	66.4	1
SHVAS-M6x120-PE	M6	120	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	80	1
SHVAS-M6x150-PE	M6	150	10	11.5	9	12	2	1.5	SHVAS_M6.dxf	-	100	1
SHVAS-M8x35-PE	M8	35	13	15	12	16	2	1.5	SHVAS_M8.dxf	-	38	1
SHVAS-M8x40-PE	M8	40	13	15	12	16	2	1.5	SHVAS_M8.dxf	-	43.7	1
SHVAS-M8x45-PE	M8	45	13	15	12	16	2	1.5	SHVAS_M8.dxf	-	49.5	1
SHVAS-M8x50-PE	M8	50	13	15	12	16	2	1.5	SHVAS_M8.dxf	-	55.2	1
SHVAS-M8x60-PE	M8	60	13	15	12	16	2	1.5	SHVAS_M8.dxf	-	66.7	1
SHVAS-M8x70-PE	M8	70	13	15	12	16	2	1.5	SHVAS_M8.dxf	-	78.2	1
SHVAS-M8x80-PE	M8	80	13	15	12	16	2	1.5	SHVAS_M8.dxf	-	90	1
SHVAS-M8x90-PE	M8	90	13	15	12	16	2	1.5	SHVAS_M8.dxf	-	101	1
SHVAS-M8x100-PE	M8	100	13	15	12	16	2	1.5	SHVAS_M8.dxf	-	112.6	1
SHVAS-M8x120-PE	M8	120	13	15	12	16	2	1.5	SHVAS_M8.dxf	-	135.6	1
SHVAS-M8x150-PE	M8	150	13	15	12	16	2	1.5	SHVAS_M8.dxf	-	170	1
